Multi Gas Detector
GX-6000

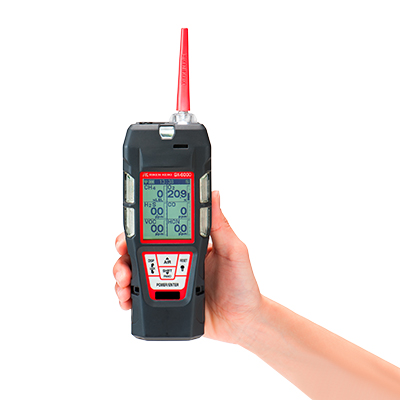

Simply put, the GX-6000 is a game changer. This powerful hand-held instrument is capable of simultaneously monitoring up to 6 gases. In addition to the standard 4 confined space gases which include combustibles, O2, CO, & H2S, the GX-6000 has 2 additional smart channels that accept PID, IR or super toxic sensors.
Equipped with a strong internal sample pump, a man-down alarm, a panic alarm, an LED flashlight, and large auto rotating LCD display, the GX-6000 can operate as a single gas PID unit or a multifunctional tool utilizing all 6 channels. The GX-6000 with a PID sensor will come equipped with a library of over 600 VOC gases to choose from as standard. Choosing from the library is easy with a personalized favorites list of 30 commonly used VOC’s as well as a list of 8 of the most recently used VOC’s.
The GX-6000 has a rugged design built for the nastiest environments. It is equipped with a removable impact-resistant rubber boot and a dust and water resistant enclosure with an IP-67 rating. With 5 bright LED lights on 3 sides of the instrument, alarms are easily seen from a variety of perspectives. With vibration and loud audible alarm, GX-6000 will easily alert users when needed.
- Features
- Applications
- Approvals
- Gas Combination
- Specification
- Accessories
- Multi gas Detection - 1 to 6 gases
- Small & light - World smallest & lightest
- Wide operation temp -20 to 50°C
- Various approvals - ATEX IIECEx I CE
- Smart sensor - PID, EC, IR, as
- Interchangeable power source - Li-ion I Alkaline
- High water .& dust proof level - IP67
- Docking station - SDM-6000
- New functions - Full dot LCD / Multi language / Man down / Panic alarm / LCD inversion / LED Flashlight
- Personal Monitoring
- Refineries / Petrochemical / Wastewater Treatment
- Confined Space
- Utilities
- Chemical Plants
- Hazardous Material
- Water
- Fire Services
- Mining
- Ex ia IIC T4 Ga (ATEX / IECEx)
Standard 4 Gas Sensor
| No. | Target Gas | Sensor | Code |
|---|---|---|---|
| 1 | CH4 or HC | NC-6264AZP | M or H or O |
| 2 | O2 | OS-8M2 | 1 or 0 |
| 3 | H2S | ES-1827i | 1 r 0 |
| 4 | CO | ES-1821 | 1 r 0 |
Smart Sensor
| 5, 6 7, 8 |
VOC (ppb) | PIS-001 | P1 |
| VOC (ppm) | PIS-002 | P2 | |
| SO2 | ESS-03DH | E1 | |
| NO2 | ESS-03DH | E2 | |
| HCN | ESS-03DH | E3 | |
| NH3 | ESS-8332 | E4 | |
| CL2 | ESS-8335 | E5 | |
| CO2 (5vol%) | DES-3311-1 | D1 | |
| HC (IR) | DES-3311-2 | D2 | |
| None | - | 00 |
Battery Type
| No. | Battery Type | Model | Code |
|---|---|---|---|
| 9 | Lithium-ion | BUL-6000 | L |
| Dry alkaline | BUD-6000 | D |

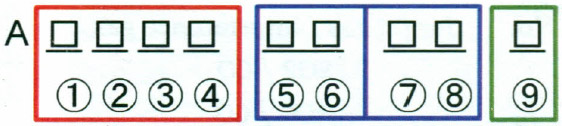

"A" is a fixed code.
Choose a combination of 1-6 gases and battery type from the tables left.
1 to 4 : Standard 4 gas sensor (0 to 4 sensors) 5,6, 7,8 : Smart sensor' (0 to 2 sensors) 9 : Battery type
Ex.) When "M11 OP1E1 L" is indicated, the gases to be detected are "CH4 <%LEL>, O2, H2S, VOC (ppb). SO2", and the battery type is Lithium-ion.
NOTE :
Interference effects on indicated values are seen on some combination. For more details, please contact RIKEN KEIKI.
| Gas To Be Detected | Combustible gas (HC/CH4) <%LEL> |
Oxygen (O2) |
Hydrogen sulfide (H2S) |
Carbon monoxide (CO) |
Ammonia (NH3) |
| Detection Principle | New ceramic | Galvanic cell type | Electrochemical type | Electrochemical type | Electrochemical type |
| Detection Range | 0- 100%LEL | 0-25.0% | 0- 30.0 ppm | 0- 150 ppm | 0-400.0 ppm |
| Minimum Resolution | 1%LEL | 0.1 vol% | 0.5 ppm | 1 ppm | 0.5 ppm |
| Alarm Setpoint | 10%LEL (AL 1) 50%LEL (AL2) 1OO%LEL (OVER) |
19.5 vol% (AL 1) 23.5 vol% (AL2) 40.0 vol% (OVER) |
5.0 ppm (AL 1) 30.0 ppm (AL2) 10.0 ppm (TWA) 15.0 ppm (STEL) 100.0 ppm (OVER) |
25 ppm (AL 1) 50 ppm (AL2) 25 ppm(TWA) 200 ppm (STEL) 500.0 ppm (OVER) |
25.0 ppm (AL 1) 50.0 ppm (AL2) 25.0 ppm (TWA) 35.0 ppm (STEL) 400.0 oorn (OVER) |
| Gas To Be Detected | Volatile organic compound (VOC) |
Volatile organic compound (VOC) |
Sulfur dioxide (S02) |
Nitrogen dioxide (N02) |
Chlorine (Cl2) |
| DetectIon Principle | Photoionization type | Photoionization type | Electrochemical type | Electrochemical type | Electrochemical type |
| DetectIon Range | 50000 ppb | 6000 ppm | 0- 6.00 ppm | 0- 9.00 ppm | 0- 10.00 ppm |
| Minimum Resolution | 1 ppb (0 - 5000 ppb) 10 ppb (5000 - 50000 ppb) |
0.1 ppm (0 - 600.0 ppm) 1 ppm (600 - 6000 ppm) |
0.05 ppm | 0.05 ppm | 0.05 ppm |
| Alarm Setpoint | 5000 ppb (AL 1) 10000 ppb (AL2) - (TWA) - (STEL) 50000 ppb (OVER) |
400.0 ppm (AL 1) 1000.0 ppm (AL2) - (TWA) - (STEL) 6000 ppm (OVER) |
2.00 ppm (AL 1) 5.00 ppm (AL2) 2.00 ppm (TWA) 5.00 ppm (STEL) 6.00 ppm (OVER) |
3.00 ppm (AL 1) 6.00 ppm (AL2) 3.00 ppm (TWA) 9.00 ppm (OVER) |
0.50 ppm (AL 1) 1.00 ppm (AL2) 0.50 ppm (TWA) 1.00 ppm (OVER) |
| Gas to be detected | Hydrogen cyanide (HCN) |
Carbon dioxide (CO2) < vol% > |
Combustible gas (HC) <%LEL | Vol%> |
||
| Detection Principle | Electrochemical type | Non-dispersive infrared type | Non-dispersive infrared type | ||
| DetectIon Range | 0- 15.0 ppm | 0∼5.00vol% | 0∼100%LEL / (to 30.0 Vol%) |
||
| Minimum Resolution | 0.1 ppm | 0.02vol% | 1%LEL / O.5vol% | ||
| Alarm Setpoint | 5.0 ppm (AL 1) 10.0 ppm (AL2) 4.7 ppm (STEL) 15.0 ppm (OVER) |
0.50vol%(AL 1) 3.00vol%(AL2) 0.50vol%(TWA) 3.00vol%(STEL) 5.00vol%(OVER) |
1O%LEU-(AL 1) 50%LEU-(AL2) 100%LEU30vol% (OVER) |
||
(*) Automatic %LEL and vol% range switching
Common specification
| Concentration Display | Digital LCD (full-dot display, 160 x 128 dots) |
| Detection Method | Pump suction type |
| Flow Rate | 0.45 L/min or more (Open flow rate) |
| Displays | Clock display, battery level display, operating state display and'flow check display |
| Displays Language | English, Japanese, German, Russian, Korean, Spanish, Italian, French, Portuguese |
| Buzzer Sound Volume | 95 dB (A) or higher (30 cm) |
| Gas Alarm Display | Lamp blinking, continuous modulating buzzer sounding, gas concentration and alarm detail disolav blinkina and vibration |
| Gas Alarm Pattern | Self-latching |
| Fault Alarm/Self Diagnosis | System abnormalities, sensor abnormalities, battery voltage drop, calibration failure, and low flow rate |
| Fault Alarm Display | Lamp blinking, intermittent buzzer sounding, and detail display |
| Fault Alarm Pattern | Self-latching |
| Panic Alarm Display | Preliminary alarm : Lamp blinking, intermittent buzzer sounding Main alarm : Lamo blinkina, continuous modulatina buzzer soundina |
| Panic Alarm Pattern | Self-latching |
| Man-Ddown Alarm Display (*) | Preliminary alarm : Lamp blinking, intermittent buzzer sounding Main alarm : Lamp blinking, continuous modulating buzzer sounding |
| Man-Down Alarm Pattern (*) | Non latching (auto-reset) |
| Transmission Specification | IrDA (for data logger) |
| Power Supply | Standard : Dedicated lithium ion battery unit [BUL-6000) Option : Dedicated dry battery unit [BUD-60001 |
| Continuous Operating Time | BUL-6000 : About 14 hours (25°C, no alarm and no lighting) BUD-6000 : About 8 hours (25°C, no alarm and no lighting) |
| Operating Temperatures | -20 - +50°C |
| Operating Humidities | Below 95% RH (Non-condensing) |
| Structure | Drip-proof and dust-proof performances (compliant to IP67 level) (tubes excluded) |
| Explosion-Proof Structure | Intrinsically safe explosion-proof structure |
| Explosion-Proof Class | Ex ia IIC T4 Ga (ATEXIIECEx) |
| External Dimensions | Approx. 70 (W) x 201 (H) x 54 (D) mm (projection portions excluded |
| Weight | Approx. 500 g (When BUL-6000 is used)/Approx. 450 g (When BUD-6000 is used) |
* Normally the man-down alarm function IS set to OFF and unavailable. To use this function, please contact RIKEN KEIKL
Standard Accessories
-
BUL-6000
(Li-ion battery unit), Charger -
Rubber Boot -
Taper Nozzle -
LCD Protect Film -
Hand Strap -
Belt Clip
Filter
CO2 removal filter for CO2 sensor
Charcoal filter for PID sensor
Optional Accessories
-
Gas Sampling Probe gas sampling hose (0.75m/5m/10m/20m/30m) -
BUD-6000 (Alkaline battery unit) AA battery x 3 -
Data logger Program -
PID list Setting Program -
SDM-6000
