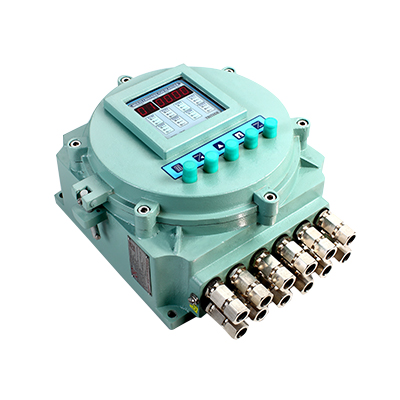

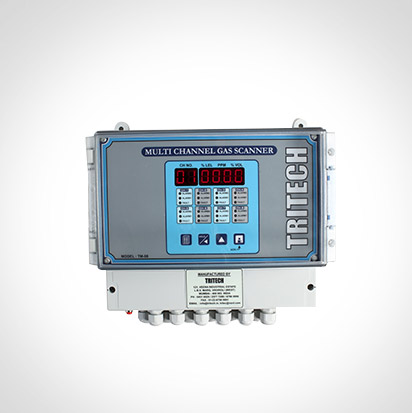

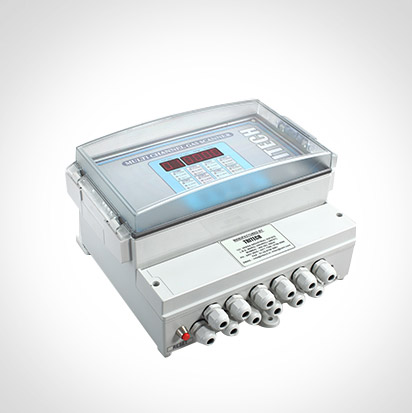

TM-08/16

TM-08/16 is especially suitable for application were Multi Channel display type system is to be installed with budget limitations. These Models are basically micro controller based Gas scanners of 08 / 16 channels. They are available in Flameproof and Safe area mounting versions. Special features that provide cutting edge over competition in market are Individual LED indication for each channel, Lamp test facility, Relay Contacts, and RS-485 output. All Tritech make Gas transmitters can be connected to Model TM-08/16. Flameproof models are available for Gas group IIA-IIB or for IIC. All the Explosion proof versions are PESO/CMRI/ERTL(E) approved

Download Brochure

8/16 Channel Input
Accepts 4-20mA Input
Fully Configurable Alarm Relays
Lamp Test Facility

RS-485 Modbus Output
In-built Audio Alarm with Accept facility
Weather proof and Dust proof (IP 65) enclosure [Optionally available in Flameproof enclosure]
Uses reliable long life sensors

LPG / CNG Storage and Distribution
Automotive Manufacturing
Chemical Plants
Petrochemical & Refineries

Pharmaceuticals and Drug Manufacturers
Power & Fertiliser Plants
Waste Water Treatment & Effluent Treatment

IIA - IIB, Optionally IIC certified by CCOE ( PESO ) / ERTL (E)

	Combustible	Toxic	Oxygen
Gas Range	0 - 100% LEL Combustible gas in air	CI₂ : 0 - 5 upto 50 PPM S0₂ : 0 - 10 PPM HCN : 0 - 25 PPM H₂S : 0 - 100 PPM CO : 0 - 1000 PPM VOC : 0 - 1000 PPM NH₃ : 0 - 1000 PPM (Other Gases on Request)	0 - 5, 10, 15, 20, 25, 30% V/V O₂ Or 0 - 1000, 1999 PPM O₂
Detector Type	3 Wire Transmitter	2 Wire Transmitter	2 Wire Transmitter
Sensor Type	Catalytic Combustion OR Infrared	Electro Chemical, Semi Conductor OR PID	Electro Chemical OR Galvanic
Alarms	Two Adjustable Alarm Levels, i.e. Alarm 1 and Alarm 2
Display	Common 4 digit bright continuous LED digital read out for Gas Conc. & Single digit for Channel no.
Indicators	Alarm 1, Alarm 2 individual Red LED, Fault Amber LED
Contacts	Common : SPDT Potential free contact for Alarm 1, Alarm 2 & Fault Contacts Rated 230 V AC, 5 Amp
Output	Digital : Modbus RTU output standard, fully configurable 2 wire RS-485
Power Supply	230 V AC or 110 V AC, 50 Hz, Others on request
Dimensions	Non Flame proof TM - 08 : 310 mm (H) x 280 mm (W) x 115 mm (D) Flame proof TM - 08 : 310 mm (H) x 350 mm (W) x 170 mm (D)
Mounting	Wall / Surface Mounted
Protection	Dust and Weather proof to IP-65 standard (Optionally Flameproof)
Operating Temp.	0⁰ - 60⁰ C
Humidity	0 - 95% RH, Non-Condensing
Optional Accessories	Trilog software

Trilog Software
Repeater Panel

Auto Dialer
Water / Dust / Solvent Filter

Mounting Bracket / Stand
Weather Proof Canopy
Flame Proof Flasher
Safe Area Hooter

Combustible / Explosive / Flammable Gases

Toxic Gases

VOC Gases

Gas Name
Acetaldehyde
Acetic Acid
Acetic Anhydride
Acetone
Acetylene
Allyl Alcohol
Acrylontrile
Alkyl Alcohol
Ammonia
N-Amyl Alcohol
Aniline
Benzene
Biphenyl
1.3 Butadiene
N-Butane
Iso-Butane
Butane-1
CIS-Butene-2
Trans Butene-2
n Butyl Alcohol
Iso Butyl Alcohol
Tert Butyl Alcohol
N-Butyl Benzene
Iso Butyl Benzene
n Butyric Acid
N-Butanol
I-Butanol
Tert-Butanol
Butyl Acetate
N-Butyl Benzene
ISO-Butyl Benzene
Carbon Disulphide
Carbon Oxysulphide
Chlorobenzene
Cyanogen
Cyclohexane
Cyclopropane
CNG (Compressed Natural Gas)
N-Decane
Diethylamine
Dimethylamine
2.3 Dimethylpentane
2.2 Dimethylpropane
Dimethyl Sulphide
Dioxane
Ethane
Ethyl Acetate
Ethyl Alcohol
Ethyl Amine
Ethanol
Ethyl Benzene
Ethyl Bromide
Ethyl Chloride
Ethyl Cyclopentane
Ethyl Ether
Ethylene
Ethylene Dichloride
Ethylene Oxide
Diethylether
Ethyl Formate
Ethyl Mercaptan
N-Heptane
N-Hexane
Hydrazine
Hydrogen
Kerosene
LPG (Liquified Petroleum Gas)
Methane (LNG)
Methanol
Methyl Chloride
Methyl Cyclohexane
Methylene Dichloride
Dimethyl Ether
Methyl Ethyl Ether
Methyl Ethyl Ketone
Methyl Format
Methyl Mercaptan
Methyl Propionate
Methyl Propyl Ketone
Naphthalene
Nitromethane
N-Nonane
N-Octane
N-Pentane
Iso Pentane
Petrol
Propane
n Propyl Alcohol
n Propyl Amine
n Propyl Chloride
N-Propanol
I-Propanol
PNG ( Piped Natural Gas)
Propylene
Propylene Oxide
Iso-Propyl Ether
Propyne
Styrene Monomer
Tetra Hydra Furan
Toluene
Triethylamine
Trimethylether
Trimethylbenzene
White Spirit
o-Xylene
m-Xylene
p-Xylene
And many more

Gas Name	Formula
Chlorine	Cl2
Sulphur Dioxide	SO2
Hydrogen Cyanide	HCN
Hydrogen Sulphide	H2S
Carbon Monoxide	CO
Volatile Organic Compound	VOC
Ammonia	NH3
Acetic Acid	CH3COOH
Ammonia	NH3
Ammonia	NH3
Arsine	AsH3
Boron Trichloride	BCl3
Boron Trifluoride	BF3
Bromine	Br2
Carbon Dioxide	CO2
Carbon Dioxide	CO2
Carbon Dioxide	CO2
Carbon Dioxide	CO2
Carbon Monoxide	CO
Carbon Monoxide	CO
Carbon Monoxide	CO
Chlorine	Cl2
Chlorine Trifluoride	ClF3
Combustible PPM	PPM
Diborane	B2H6
Dichlorosilane	DCS
Disilane	Si2H6
Fluorine	F2
Formaldehyde	HCHO
Germane	GeH4
Halocarbons	HCFC
Hexane	C6H14
Hydrazine	N2H4
Hydrocarbon PPM	PPM
Hydrogen PPM	H2
Hydrogen Bromide	HBr
Hydrogen Chloride	HCl
Hydrogen Cyanide	HCN
Hydrogen Fluoride	HF
Hydrogen Iodide	HI
Hydrogen Sulfide	H2S
Hydrogen Sulfide	H2S
Hydrogen Sulfide	H2S
Iodine	I2
Isopropyl Alcohol (IPA)	CH3CHOHCH3
Nitric Acid	HNO3
Nitric Oxide	NO
Nitrogen Dioxide	NO2
Nitrogen Tetraoxide	N2O4
Nitrogen Trifluoride	NF3
Octafluorocyclopentene	C5F8
Ozone	O3
Perfluorobutadiene	C4F6
Phosphine	PH3
Silane	SiH4
Silicon Tetrachloride	SICI4
Silicon Tetrafluoride	SiF4
Sulphur Dioxide	SO2
Sulphur Tetrafluoride	SF4
Tetraethyl Orthosilicate	TEOS
Trichlorosilane	TCS
Trimethoxy Phosphate	TMP
Trimethoxyboron	TMB
Tungsten Hexafluoride	WF6
1 1 1-Trichloroethane	C2H3CI3
And many more

Gas Name	Formula
Acetaldehyde	C2H4O
Acetamide	C2H5NO
Acetic acid	C2H4O2
Acetic anhydride	C4H6O3
Acetoin	C4H8O2
Acetone	C3H6O
Acetophenone	C8H8O
Acetyl bromide	C2H3BrO
Acetylglycine, N-	C4H7NO3
Acrolein	C3H4O
Acrylic Acid	C3H4O2
Alkanes, n-, C6+
Allyl alcohol	C3H6O
Allyl bromide	C3H5Br
Allyl chloride	C3H5Cl
Allyl glycidyl ether	C6H10O2
Allyl propyl disulfide	C6H12S2
Ammonia	NH3
Amyl acetate	C7H14O2
Amyl acetate, sec-	C7H14O2
Amyl alcohol	C5H12O
Amyl alcohol, tert-	C5H12O
Amyl methyl ether, tert-	C6H14O
Anethole	C10H12O
Aniline	C6H7N
Anisole	C7H8O
Anisyl aldehyde	C8H8O2
Arsine	AsH3
Asphalt, petroleum fumes
Benzaldehyde	C7H6O
Benzene	C6H6
Benzene thiol	C6H5SH
Benzoic acid	C7H6O2
Benzonitrile	C7H5N
Benzoquinone, o-	C6H4O2
CNG (Compressed Natural Gas)	C6H4O2
Benzoyl bromide	C7H5BrO
Benzyl 2-phenylacetate	C15H14O2
Benzyl acetate	C9H10O2
Benzyl alcohol	C7H8O
Benzyl chloride	C7H7Cl
Benzyl formate	C8H8O2
Benzyl isobutyrate	C11H14O2
Benzyl nitrile	C8H7N
Benzyl propionate	C10H12O2
Benzylamine	C7H9N
Biphenyl	C12H10
Borneol	C10H18O
Bromine	Br2
Bromo-2,2-dimethylpropane, 1-	C5H11Br
Bromo-2-chloroethane, 1-	C2H4BrCl
Bromo-2-methylpentane, 1-	C6H13Br
Bromoacetone	C3H5BrO
Bromoacetylene	C2HBr
Bromobenzene	C6H5Br
Bromobutane, 1-	C4H9Br
Bromobutane, 2-	C4H9Br
Bromocyclohexane	C6H11Br
Bromoethane	C2H5Br
Bromoethanol, 2-	C2H5BrO
Bromoethyl methyl ether, 2-	C3H7BrO
Bromoform	CHBr3
	C5H11Br
Bromopropane, 1-	C3H7Br
	C5H4BrN
Bromopyridine, 4-	C5H4BrN
Bromotrimethylsilane	C3H9BrSi
But-2-ynal	C4H4O
But-3-ynal	C4H4O
Butadiene diepoxide, 1,3-	C4H6O2
Butadiene, 1,3-	C4H6
Butane, n-	C4H10
Butanedione, 2,3-	C4H6O2
Butanoic acid	C4H8O2
Butanol, 1-	C4H10O
Buten-3-ol, 1-	C4H8O
Butene, 1-	C4H8
Butene, 2-	C4H8
Butene, cis-2-	C4H8
Butene, trans-2-	C4H8
Butenoic acid, 3-	C4H6O2
Butoxyethanol, 2-	C6H14O2
Butoxyethylacetate, 2-	C8H16O3
Butyl acetate	C6H12O2
Butyl acetate, sec-	C6H12O2
Butyl acetate, tert-	C6H12O2
Butyl acrylate	C7H12O2
Butyl alcohol, sec-	C4H10O
Butyl benzene, tert-	C10H14
Butyl butyrate	C8H16O2
Butyl chloroformate	C5H9ClO2
Butyl cyclohexan-1-ol, 4- tert-	C10H20O
Butyl cyclohexyl acetate, 2tert- -	C12H22O2
Butyl ether, n-	C8H18O
Butyl glycidyl ether	C7H14O2
Butyl iodide	C4H9I
Butyl isocyanate	C5H9NO
Butyl lactate	C7H14O3
Butyl mercaptan	C4H10S
Butyl mercaptan, tert-	C4H10S
Butyl methacrylate	C8H14O2
Butyl propionate, n-	C7H14O2
Butylamine, n-	C4H11N
Butylamine, sec-	C4H11N
Butylamine, tert-	C4H11N
Butylene carbonate, 1,2-	C5H8O3
Butylphenol, o-sec-	C10H14O
Butyn-1-ol, 2-	C4H6O
Butyn-2-one	C4H4O
Butyraldehyde	C4H8O
Butyrolactone, gamma-	C4H6O2
Butyryl chloride	C4H7ClO
C
Camphene	C10H16
Camphor	C10H16O
Carbon disulfide	CS2
Carbon suboxide	C3O2
Carbon tetrabromide	CBr4
Carene	C10H16
Carvone, R-	C10H14O
Caryophyllene	C15H24
Chloramine	ClH2N
Chlorine dioxide	ClO2
Chloro-1,1-difluoroethene, 2-	C2HClF2
Chloro-2-propanone, 1-	C3H5ClO
Chloroacetaldehyde	C2H3ClO
Chlorobenzene	C6H5Cl
Chlorobutane, 1-	C4H9Cl
Chlorobutane, 2-	C4H9Cl
Chlorocyclohexane	C6H11Cl
Chloroethyl methyl ether, 2-	C3H7ClO
Chloromethoxyethane	C3H7ClO
Chloroprene	C4H5Cl
Chloropyridine, 2-	C5H4ClN
Chlorostyrene, o-	C8H7Cl
Chlorotoluene, m-	C7H7Cl
Chlorotoluene, o-	C7H7Cl
Chlorotoluene, p-	C7H7Cl
Chlorotrifluoroethylene	C2ClF3
Cinnamic aldehyde	C8H8O
Cinnamyl acetate	C11H12O2
Cinnamyl alcohol	C9H10O
Citral	C10H16O
Citronellal	C10H18O
Citronellol	C10H20O
Citronellol acetate	C12H22O2
Citronellol formate	C11H20O2
Citronellyl isobutyrate	C14H26O2
Coumarin	C9H6O2
Cresol, m-	C7H8O
Cresol, o-	C7H8O
Cresol, p-	C7H8O
Cresyl acetate, p-	C9H10O2
Cresyl ethyl ether, p-	C9H12O
Cresyl methyl ether	C8H10O
Crotonaldehyde	C4H6O
Cumene	C9H12
Cycloalkanes
Cyclobutanone	C4H6O
Cyclobutene	C4H6
Cycloheptane	C7H14
Cyclohex-2-enedione, 1,4-	C6H6O2
Cyclohexane	C6H12
Cyclohexanol	C6H12O
Cyclohexanone	C6H10O
Cyclohexanthiol	C6H12S
Cyclohexene	C6H10
Cyclohexyl acetate	C8H14O2
Cyclohexylamine	C6H13N
Cyclooctadiene	C8H12
Cyclopentadiene	C5H6
Cyclopentane	C5H10
Cyclopentanone	C5H8O
Cyclopentene	C5H8
Cyclopentene-1,3-dione, 4-	C5H4O2
Cymene, p-	C10H14
Decahydronaphthalene	C10H18
Decanal	C10H20O
Decane	C10H22
Decyne, 1-	C10H18
Diacetone alcohol	C6H12O2
Diazine, 1,2-	C4H4N2
Diazine, 1,3-	C4H4N2
Dibromoacetylene	C2Br2
Dibromochloromethane	CHBr2Cl
Dibromocyclohexane, 1,2-	C6H10Br2
Dibromocyclopentane	C5H8Br2
Dibromodichloromethane	CBr2Cl2
Dibromoethane, 1,2-	C2H4Br2
Dibromoethene, 1,1-	C2H2Br2
Dibromoethene, 1,2-	C2H2Br2
Dibromomethane	CH2Br2
Dichloro-1,2-difluoroethene, 1,2-	C2Cl2F2
Dichloro-1-propene, 2,3-	C3H4Cl2
Dichloro-2,2,-difluoroethene, 1,1-	C2Cl2F2
Dichloroacetylene	C2Cl2
Dichlorobenzene, o-	C6H4Cl2
Dichlorobenzene, p-	C6H4Cl2
Dichloroethene, 1,1-	C2H2Cl2
Dichloroethene, cis-1,2-	C2H2Cl2
Dichloroethene, trans-1,2-	C2H2Cl2
Dichloroethylene 1,2-	C2H2Cl2
Dichloromethane	CH2Cl2
Dichloromethylamine	CH3Cl2N
Dicyclohexylamine	C12H23N
Dicyclopentadiene	C10H12
Diesel fuel
Diethoxymethane	C4H10O2
Diethyl carbonate	C5H10O3
Diethyl ether	C4H10O
Diethyl maleate	C8H12O4
Diethyl phthalate	C12H14O4
Diethyl sulfate	C4H10SO4
Diethyl sulfide	C4H10S
Diethyl sulfone	C4H10O2S
Diethylacetylene	C6H10
Diethylamine	C4H11N
Diethylaminopropylamine, 3-	C7H18N2
Diethylenetriamine	C4H13N3
Diethylhydroxylamine	C4H11NO
Diethylsilane	C4H12Si
Diglycidyl ether	C6H10O3
Dihydroeugenol	C10H14O2
Dihydrojasmone	C11H18O
Dihydromercenol	C10H20O
Dihydroxybenzene, 1,2-	C6H6O2
Dihydroxybenzene, 1,3-	C6H6O2
Diiodomethane	CH2I2
Diisobutyl ketone	C9H18O
Diisobutylene	C8H16
Diisopropyl benzene	C12H18
Diisopropyl ether	C6H14O
Diketene	C4H4O2
Dimethoxybenzene, 1,4-	C8H10O2
Dimethoxymethane	C3H8O2
Dimethyl cyclohexane, 1,2-	C8H16
Dimethyl disulfide	C2H6S2
Dimethyl ether	C2H6O
Dimethyl octan-1-ol, 3,7-	C10H22O
Dimethyl octan-3-ol, 3,7-	C10H22O
Dimethyl pentane, 2,4-	C7H16
Dimethyl phthalate	C10H10O4
Dimethyl sulfoxide	C2H6OS
Dimethylacetamide N,N-	C4H9NO
Dimethylacetylene	C4H6
Dimethylaminoethanol, 2-	C4H11NO
Dimethylaniline, NN-	C8H11N
Dimethylboron bromide	C2H6BBr
Dimethylbutyl acetate	C8H16O2
Dimethylcycloheptane, 1,2-	C9H18
Dimethylethylamine, NN-	C4H11N
Dimethylformamide	C3H7NO
Dimethylhydrazine, 1,1-	C2H8N2
Dimethylsilane	C2H8Si
Dimethylthiophosphoryl chloride	C2H6ClO2PS
Di-n-butylamine	C8H19N
Di-n-propylamine	C6H15N
Dioxane, 1,4-	C4H8O2
Dioxolane	C3H6O2
Dipentene	C10H16
Diphenyl ether	C12H10O
Dipropyl ether	C6H14O
Dipropylene glycol	C6H14O3
Disilane	Si2H6
Disulfur dibromide	Br2S2
Di-tert-butyl-p-cresol	C15H24O
Divinylbenzene	C10H10
Dodecene	C12H26
Epichlorohydrin	C3H5ClO
Epoxypropyl isopropyl ether, 2,3-	C6H12O2
Estagole	C10H12O
Ethanol	C2H6O
Ethanolamine	C2H7NO
Ethoxy-2-methylpropane, 1-	C6H14O
Ethoxy-2-propanol, 1-	C5H12O2
Ethoxy-butane, 2-	C6H14O
Ethoxyethanol, 2-	C4H10O2
Ethoxyethyl acetate, 2-	C6H12O3
Ethyl 2,2,2-trifluoroethyl ether	C4H7F3O
Ethyl 2-methylbutyrate	C7H14O2
Ethyl acetate	C4H8O2
Ethyl acetoacetate	C6H10O3
Ethyl acrylate	C5H8O2
Ethyl benzene	C8H10
Ethyl benzoate	C9H10O2
Ethyl butyrate	C6H12O2
Ethyl chloroformate	C3H5O2Cl
Ethyl cyanoacrylate	C6H7O2N
Ethyl cyclohexane	C8H16
Ethyl decanoate	C12H24O2
Ethyl formate	C3H6O2
Ethyl hexanoate	C8H16O2
Ethyl hexanol, 2-	C8H18O
Ethyl hexyl acrylate, 2-	C11H20O2
Ethyl iodide	C2H5I
Ethyl isopropyl ketone	C6H12O
Ethyl lactate	C5H10O3
Ethyl mercaptan	C2H6S
Ethyl methacrylate	C6H10O2
Ethyl morpholine, 4-	C6H13NO
Ethyl octanoate	C10H20O2
Ethyl phenyl acetate	C10H12O2
Ethyl propanoate	C5H10O2
Ethyl tert-butyl ether	C6H14O
Ethyl toluene	C9H12
Ethyl-3-ethoxypropionate	C7H14O3
Ethylacetylene	C4H6
Ethylamine	C2H7N
Ethylene	C2H4
Ethylene carbonate	C3H4O3
Ethylene glycol	C2H6O2
Ethylene glycol diacetate	C6H10O4
Ethylene glycol monopropyl ether	C5H12O2
Ethylenediamine	C2H8N2
Ethyleneimine	C2H5N
Ethylhexanal, 2-	C8H16O
Ethylhexenal, 2-	C8H14O
Eucalyptol	C10H18O
Eugenol	C10H12O2
Eugenol methyl ether	C11H14O2
Fenchol	C10H18O
Ferrocene	C10H10Fe
Fluorobenzene	C6H5F
Fluorobenzoic acid, 4-	C7H5FO2
Formamide	CH3ON
Furfural	C5H4O2
Furfuryl alcohol	C5H6O2
Furfuryl mercaptan	C5H6OS
Gasoline
Geranial	C10H16O
Geraniol	C10H18O
Geranyl acetate	C12H20O2
Germane	GeH4
Glutaraldehyde	C5H8O2
Glycidyl methacrylate	C7H10O3
Glyoxal	C2H2O2
Heptan-2-one	C7H14O
Heptan-3-one	C7H14O
Heptane	C7H16
Heptanol	C7H16O
Heptene, 1-	C7H14
Heptylcyclopentan-1-one, 2-	C12H22O
Heptyne, 1-	C7H12
Hex-1-en-3-ol	C6H12O
Hexachlorodisilane	Cl6Si2
Hexamethyldisilazane, 1,1,1,3,3,3-.	C6H18NSi2
Hexamethyldisiloxane	C6H18OSi2
Hexamethylene diisocyanate	C8H12N2O2
Hexan-2-one	C6H12O
Hexane	C6H14
Hexanoic acid	C6H12O2
Hexanol	C6H14O
Hexene, 1-	C6H12
Hexenyl acetate, cis-3-	C8H14O2
Hexenyl butyrate, cis-3-	C10H18O2
Hexylaldehyde	C6H12O
Hydrazine	H4N2
Hydrogen iodide	HI
Hydrogen selenide	H2Se
Hydrogen sulfide	H2S
Hydrogen telluride	H2Te
Hydroxycitronellal	C10H20O2
Hydroxyethyl acrylate	C5H8O3
Hydroxylamine	H3NO
Hydroxypropyl acrylate, 2-	C6H10O3
Indene	C9H8
Indole	C8H7N
Iodine	I2
Iodobenzene	C6H5I
Iodoethene	C2H3I
Iodoform	CHI3
Iodomethane	CH3I
Isoalkanes, C10-C13
Isoamyl acetate	C7H14O2
Isoamyl salicilate	C12H16O3
Isoamylene	C5H10
Isobornyl acetate	C12H20O2
Isobutane	C4H10
Isobutanol	C4H10O
Isobutyl acetate	C6H12O2
Isobutyl acrylate	C7H12O2
Isobutylene	C4H8
Isobutylene epoxide	C4H8O
Isobutyraldehyde	C4H8O
Isobutyric acid	C4H8O2
Isodecanol	C10H22O
Isoeugenol	C10H12O2
Isoheptane	C7H16
Isojasmone	C11H18O
Isomenthone	C10H18O
Isononanol	C9H20O
Isooctane	C8H18
Isooctanol	C8H18O
Isopentane	C5H12
Isopentene	C5H10
Isophorone	C9H14O
Isophorone diisocyanate	C12H18N2O2
Isoprene	C5H8
Isopropanol	C3H8O
Isopropanolamine	C3H9NO
Isopropoxyethanol, 2-	C5H12O2
Isopropyl acetate	C5H10O2
Isopropyl chloroformate	C4H7O2Cl
Isopropyl mercaptan	C3H8S
Isopropyl nitrite	C3H7NO2
Isopropylamine	C3H9N
Isopropylaminoethanol, 2-	C5H13NO
Isopropylcyclohexane	C9H18
Isothiazole	C3H3NS
Isoxazole	C3H3NO
Jasmal	C11H22O3
Jasmone, cis-	C11H16O
Jet Fuel JP-4
Jet Fuel JP-5
Jet Fuel JP-8
Kerosene
Ketene	C2H2O
Linalool oxide	C10H18O2
Linalyl acetate	C12H20O2
Maleic anhydride	C4H2O3
Menthol	C10H20O
Menthone	C10H18O
Mercaptoacetic acid	C2H4O2S
Methacrylic acid	C4H6O2
Methacrylonitrile	C4H5N
Methanol	CH4O
Methoxy-1-butanol, 3-	C5H12O2
Methoxy-1-propanol, 2-	C4H10O2
Methoxy-2,2-dimethylpropane	C6H14O
Methoxybutyl acetate, 3-	C7H14O3
Methoxyethanol, 2-	C3H8O2
Methoxyethene	C3H6O
Methoxyethoxyethanol, 2-	C5H12O3
Methoxyethyl acetate	C5H10O3
Methoxyethyl ether, 2-	C6H14O3
Methoxymethylethoxy-2-propanol	C7H16O3
Methoxypropan-2-ol, 1-	C4H10O2
Methoxypropane, 2-	C4H10O
Methoxypropyl acetate	C6H12O3
Methyl 2-methylpropanoate	C5H10O2
Methyl acetate	C3H6O2
Methyl acetoacetate	C5H8O3
Methyl acrylate	C4H6O2
Methyl anthranilate	C8H9NO2
Methyl benzoate	C8H8O2
Methyl bromide	CH3Br
Methyl dimethylacrylate	C6H10O2
Methyl ethyl ketone	C4H8O
Methyl ethyl ketone peroxides	C8H18O6
Methyl heptyne carbonate	C9H14O2
Methyl ionone	C14H22O
Methyl isobutyl ketone	C6H12O
Methyl isocyanate	C2H3NO
Methyl isopropyl ketone	C5H10O
Methyl isothiocyanate	C2H3NS
Methyl mercaptan	CH4S
Methyl methacrylate	C5H8O2
Methyl phenyl acetate	C9H10O2
Methyl propargyl ether	C4H6O
Methyl propionate	C4H8O2
Methyl propynoate	C4H4O2
Methyl salicylate	C8H8O3
Methyl sulfide	C2H6S
Methyl tert-butyl ether	C5H12O
Methyl thiocyanate	C2H3NS
Methyl thioglyconate	C3H6O2S
Methyl undecanal, 2-	C12H24O
Methyl vinyl ketone	C4H6O
Methyl-1-butene, 3-	C5H10
Methyl-2-butanol, 3-	C5H12O
Methyl-2-propen-1-ol, 2-	C4H8O
Methyl-2-pyrrolidinone, N-	C5H9NO
Methyl-5-hepten-2-one, 6-	C8H14O
Methylamine	CH5N
Methylbutan-1-ol, 3-	C5H12O
Methylbutanol	C5H12O
Methylcyclohexane	C7H14
Methylcyclohexanol	C7H14O
Methylcyclohexanol, 4-	C7H14O
Methylcyclohexanone, 2-	C7H12O
Methylcyclopentane	C6H12
Methylenepentane, 3-	C6H12
Methylheptan-3-one, 5-	C8H16O
Methylhexan-2-one, 5-	C7H14O
Methylhydrazine	CH6N2
Methylpent-3-en-2-one, 4-	C6H10O
Methylpentan-2-ol, 4-	C6H14O
Methylpentane, 2-	C6H14
Methylpentane, 3-	C6H14
Methylpentane-2,4-diol, 2-	C6H14O2
Methylpropanoyl chloride, 2-	C4H7ClO
Methylstyrene	C9H10
Methylthiopropional, 3-	C4H8OS
Mineral oil
Mineral spirits
Monoisobutanolamine	C4H11NO
Morpholine	C4H9NO
Myrcene	C10H16
Naphthalene	C10H8
Naphthol methyl ether, 2-	C11H10O
Nitric oxide	NO
Nitrobenzene	C6H5NO2
Nitrogen dioxide	NO2
Nonane	C9H20
Nonanol (all isomers)	C9H20O
Nonene (all isomers)	C9H18
Nonene, 1-	C9H18
Norbornadiene, 2,5-	C7H8
Ocatanol (all isomers)	C8H18O
Octamethyltrisiloxane	C8H24O2Si3
Octane	C8H18
Octene (all isomers)	C8H16
Octene, 1-	C8H16
Oxalyl bromide	C2Br2O2
Oxydiethanol 2,2-	C4H10O3
Paraffin wax, fume
Paraffins, normal
Pentacarbonyl iron	FeC5O5
Pentan-2-one	C5H10O
Pentan-3-one	C5H10O
Pentanal	C5H10O
Pentandione, 2,4-	C5H8O2
Pentane	C5H12
Pentanoic acid	C5H10O2
Pentanol, 2-	C5H12O
Pentanol, 3-	C5H12O
Pentene, 1-	C5H10
Pentylcyclopentan-1-one, 2-	C10H18O
Pentylcyclopentane	C10H20
Pentyne, 1-	C5H8
Peracetic acid	C2H4O3
Perfluorobutadiene	C4F6
Perfluoro-tert-butylamine	C4H2F9N
Petroleum ether
Phellandrene	C10H16
Phenethyl methyl ether, 2-	C9H12O
Phenol	C6H6O
Phenyl ethyl isobutyrate, 2-	C12H16O2
Phenyl propene, 2-	C9H10
Phenyl-2,3-epoxypropyl ether	C9H10O2

Phenylacetaldehyde	C8H8O
Phenylacetic acid	C8H8O2
Phenylethyl acetate, 1-	C10H12O2
Phenylethyl alcohol, 2-	C8H10O
Phosphine	PH3
Picoline, 3-	C6H7N
Pine oil
Pinene, -	C10H16
Pinene,	C10H16
Piperazine	C4H10N2
Piperidine	C5H11N
Piperylene	C5H8
Prop-2-yn-1-ol	C3H4O
Propadiene	C3H4
Propan-1-ol	C3H8O
Propanamide	C3H7NO2
Propane-1,2-diol	C3H8O2
Propanolamine	C3H9NO
Propargyl chloride	C3H3Cl
Propen-1-imine, 2-	C3H5N
Propene	C3H6
Propiolic acid	C3H2O2
Propionaldehyde	C3H6O
Propionic acid	C3H6O2
Propoxy-2-propanol, 1-	C6H14O2
Propyl acetate, n-	C5H10O2
Propyl butanoate	C7H14O2
Propyl formate	C4H8O2
Propyl iodide	C3H7I
Propylamine, n-	C3H9N
Propylbenzene (all isomers)	C9H12
Propylene carbonate	C4H6O3
Propylene glycol ethyl ether acetate	C7H14O3
Propylene oxide	C3H6O
Propyleneimine	C3H7N
Propyne	C3H4
Pyrazine	C4H4N2
Pyrdinol, 4-	C5H5NO
Pyridine	C5H5N
Pyridylamine 2-	C5H6N2
Rose oxide, cis-	C10H18O
Stibine	SbH3
Styrene	C8H8
Sulfur dichloride	Cl2S
Terpineol,	C10H18O
Terpinolene	C10H16
Terpinyl acetate, -	C12H20O2
Tert-butanol	C4H10O
Tert-butyl bromide	C4H9Br
Tert-butyl formate	C5H10O2
Tetrabromoethane, 1,1,2,2-	C2H2Br4
Tetracarbonylnickel	NiC4O4
Tetrachloroethylene	C2Cl4
Tetrachloropyridine, 2,3,5,6-	C5HCl4N
Tetraethyl orthosilicate	C8H20O4Si
Tetrafluoroethylene	C2F4
Tetrahydrofuran	C4H8O
Tetrahydronaphthalene	C10H12
Tetrahydrothiophene	C4H8S
Tetramethyl succinonitrile	C8H12N2
Tetramethylbenzene (all isomers)	C10H14
Tetramethylbutane, 2,2,3,3-	C8H18
Tetramethylgermane	C4H12Ge
Tetramethylsilane	C4H12Si
Tetrathydropyran	C5H10O
Thioacetic acid	C2H4OS
Thiocarbonyl fluoride	CSF2
Thiocyanogen	C2S2N2
Thioformaldehyde trimer	C3H6S3
Thiophene	C4H4S
Thiophosgene	CC
Titanium-n-propoxide	C12H28O4Ti
Toluene	C7H8
Toluene-2,4-diisocyanate	C9H6N2O2
Toluenesulfonyl chloride, p-	C7H7SO2Cl
Toluidine, o-	C7H9N
Tolylaldehyde, p-	C8H8O
Triazine, 1,3,5-	C3H3N3
Tributyl phosphate	C12H27O4P
Tributylamine	C12H27N
Trichlorobenzene 1,2,4-	C6H3Cl3
Trichloroethylene	C2HCl3
Triethyl phosphate	C6H15PO4
Triethyl silane	C6H16Si
Triethylamine	C6H15N
Triethylbenzene	C12H18
Triethylene aluminum	C6H15Al
Trifluoroethene	C2HF3
Trifluoroethyl methyl ether, 2,2,2-	C3H5F3O
Trifluoroiodomethane	CF3I
Trimethoxymethane	C4H10O3
Trimethylamine	C3H9N
Trimethylbenzene mixtures	C9H12
Trimethylbenzene, 1,3,5-	C9H12
Trimethylborate	C3H9BO3
Trimethylcyclohexane, 1,2,4-	C9H18
Trimethylene oxide	C3H6O
Trimethylsilane	C3H10Si
Trioxane	C3H6O3
Turpentine	C10H16
TVOC
Undecane	C11H24
Vanillin	C8H8O3
Vinyl acetate	C4H6O2
Vinyl bromide	C2H3Br
Vinyl chloride	C2H3Cl
Vinyl ethyl ether	C4H8O
Vinyl fluoride	C2H3F
Vinyl-2-pyrrolidinone, 1-	C6H9NO
Vinylcyclohexene, n-	C8H12
Vinylene carbonate	C3H2O3
Vinylidine difluoride	C2H2F2
Vinylsilane	C2H6Si
Xylene mixed isomers	C8H10
Xylene, m-	C8H10
Xylene, o-	C8H10
Xylene, p-	C8H10
Xylidine, all	C8H11N
And many more
