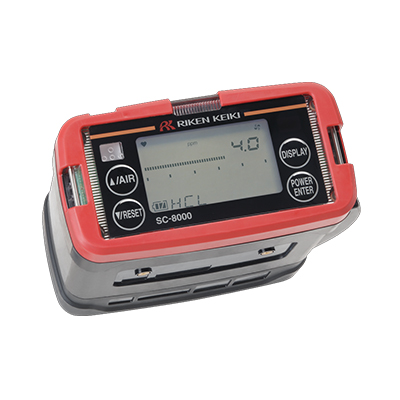

Single Gas Detector
SC-8000
The SC-8000 sets the new industry standard for rugged, reliable portable toxic gas detection. It's compact, light weight, tough, water proof and intrinsic safe design utilized features based on years of gas Detection experience, to assure that the instrument will be operated properly to check gas leak and protect workers and also, property in toxic gas Detection applications.
- Features
- Applications
- Approvals
- Specification
- Accessories
- Real time Detection with ppm range
- Large digital and bar graph display with back light
- Loud alarm buzzer with 95db
- 2 steps adjustable alarm volume
- Easy and simple operationCompact size and light weight
- ATEX intrinsic safe design Exia II C T4
- Water and dust resistant IP67
- Ergonomic design with waise strap for hands free operation
- Datalogging stanndard
- Semionductor / LED / Solar Cell Plants
- Petro Chemical / Chemical Plants
- Refineries
- Gas Plant / Gas Supplier Services
- Chemical Tanker
- Confined Space
- Utilities
- Monitoring toxic gas in hazardous zone
- Leak check at maintenance work
- IECEx (No.DEK 11.0019), ATEX (No.DEKRA 11ATEX0047), TIIS (Pending)
CE mark - CCOE (PESO)
| Model | SC-8000 |
|---|---|
| Target Gas Detection Range Alarm Point |
Please refer to the table on the next page. (Specify one detectable gas and range when ordering.) |
| Detection Principle | Electrochemical |
| Types of Alarm | Gas alarm : Latching, 2 alarms Failure alarm : Flow failure, Sensor failure, Battery failure, Circuit failure, Calibration failure, Setting current failure |
| Display of Alarm | Lamp : LED's flash (high definition LED Buzzer : (Gas alarm) Alternating sound high and low pitch, (Failure alarm) Continuous sound Display : (Gas alarm) Gas concentration on the display flashes. (Failure alarm) Alarm message on the display flashes. |
| Alarm Sound | More than 95dB (A) at 30cm |
| Sampling Method | Sample draw, approx. 0.5L/min |
| Display | Digital LCD with auto backlight Digital display (7 segments) + digital bargraph (50 segments) |
| Power Source | Rechargeable Lithium-ion battery (3 hours for a full charge) : Standard (BUL-8000) AA Alkaline battery (3 pes) : Option (BUD-8000) |
| Continuous Operation | Lithium-ion battery: more than 25 hours AA Alkaline battery: more than 18 hours |
| Operating Temp & Humidity | Operating temp: -20∼+50°C, Humidity 20∼88%RH (without condensing) |
| Dimensions & Weight | Dimension : 154(W)x81 (H)x164(D)mm, Weight: approx 1.1 kg (with BUL-8000) |
| Ingress Proof Rating | Equivalent to IP67 |
| Explosion Proof | Intrinsically safe : Exia II C T4 |
| Approvals | IECEx (No.DEK 11.0019), ATEX (No.DEKRA 11ATEX0047), TIIS (No. TC 20086) CE mark |

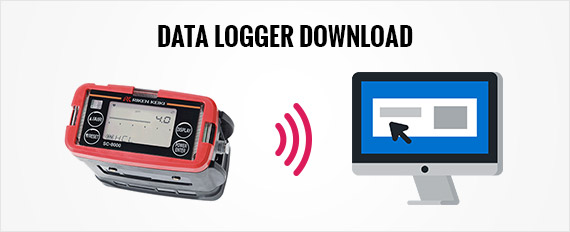

| Additional Features | Self diagnosis system Zero/Span adjustment (Demand zero/Auto zero selectable) Indication to show energizing (pilot indicator and pump driving indicator) IrDA communication, Data logger (interval, Alarm trend, Station ID control) Peak value/Average value display, Buzzer selector switch (2steps High/Low) Bump test function |
Remarks : Specifications subject to change without notice.
Detectable Gas and Measuring Range for Model SC-8000
| Detectable Gas | Chemical Formula | Measuring Range (ppm) |
Increments (ppm) |
Preset Alarm (ppm) | |
|---|---|---|---|---|---|
| 1st | 2nd | ||||
| Ammonia | NH3 | 0∼75.0 | 0.5 | 25.0 | 50.0 |
| Arsine | AsH3 | 0∼0.200 | 0.001 | 0.050 | 0.100 |
| Bromine | Br2 | 0∼1.00 | 0.01 | 0.30 | 0.60 |
| Carbon Monoxide | CO | 0∼75.0 | 0.5 | 25.0 | 50.0 |
| Carbon Monoxide | CO | 0∼75.0 | 0.5 | 25.0 | 50.0 |
| Chlorine | Cl2 | 0∼1.50 | 0.01 | 0.50 | 1.00 |
| Chlorine Trifluoride | CLF3 | 0∼1.00 | 0.01 | 0.30 | 0.60 |
| Diborane | B2Hs | 0∼0.300 | 0.002 | 0.100 | 0.100 |
| Flourine | F2 | 0∼3.00 | 0.02 | 1.00 | 2.00 |
| Germane | GeH4 | 0∼0.800 | 0.005 | 0.200 | 0.400 |
| Hydrogen Bromide | HBr | 0∼6.00 | 0.05 | 2.00 | 4.00 |
| Hydrogen Chloride | HCI | 0∼6.00 | 0.05 | 2.00 | 4.00 |
| Hydrogen Cyanide | HCN | 0∼15.0 | 0.1 | 4.0 | 10.0 |
| Hydrogen Fluoride | HF | 0∼3.00 | 0.02 | 1.00 | 2.00 |
| Hydrogen Iodide | HI | 0∼5.00 | 0.05 | 1.50 | 3.00 |
| Hydrogen Selenide | H2Se | 0∼0.200 | 0.001 | 0.050 | 0.100 |
| Hydrogen Sulfide | H2S | 0∼30.0 | 0.2 | 5.0 | 10.0 |
| Nitrogen Dioxide | N02 | 0∼15.0 | 0.1 | 5.0 | 10.0 |
| Nitrogen Monoxide | NO | 0∼100 | 1 | 25 | 50 |
| Ozone | O3 | 0∼1.00 | 0.01 | 0.30 | 0.60 |
| Phosphine | PH3 | 0∼1.00 | 0.01 | 0.30 | 0.60 |
| Phosphorus Trifluoride | PF3 | 0∼10.0 | 0.1 | 2.0 | 4.0 |
| Silane | SiH4 | 0∼15.0 | 0.1 | 5.0 | 10.0 |
| Sulfur Dioxide | S02 | 0∼6.00 | 0.05 | 2.00 | 4.00 |
Standard Accessories
- Lithium-ion battery unit BUL-8000
- Gas sampling hose (1m) with probe
- AC powered charger
( Input : AC1 OOV- AC240V 50/60Hz Output : DC12V 1.25A )
Optional Accessories
- Dry battery unit BUD-8000
- Data-logging Software
- Waist Strap
- Sampling probe holder on the neck/shoulder strap
- Carrying box (aluminium)
